The ECX OCTANE was developed to cater for clients who want a full sized luxury Off-Road caravan with the ability to store ATV’s, Bikes and other Recreational Toys.
2024 ECX OCTANE OVERVIEW
PROUDLY WEST AUSTRALIAN MADE

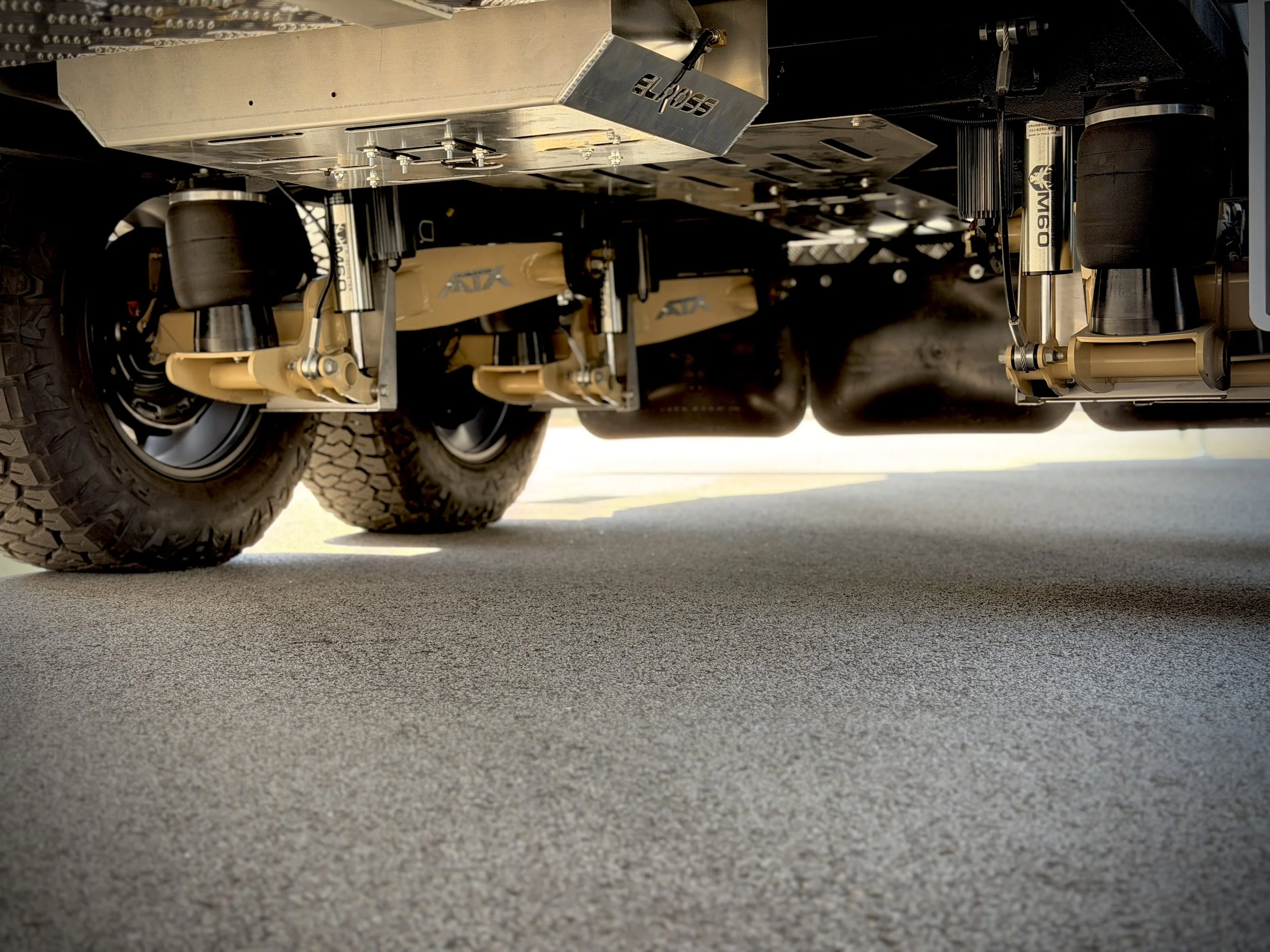

STRONG CHASSIS & SUSPENSION
Tailored to conquer Australia’s toughest terrains and conditions, Your in house fabricated Elross off road Chassis is built with Ausmills Duragal steels. Coupled with the knowledge and expertise of Cruisemaster’s XT coil suspension provide a formidable combination. An air-bag upgrade kit is available, please speak to one of our sales team to discuss your options.
The key design element of the Elross Chassis is the use of full box tube support rails that intersect the X axis main bearers that run the entire length of the van. This enables for a clean and strong chassis that offers both torsional rigidity and flexibility, rolled into the one platform. Couple this with a lengthy draw bar design philosophy and carefully calculated axle position helps Elross to create one of the safest, strongest and best towing chassis on the market.
DESIGNED FOR MAXIMUM STORAGE
The standout feature of the ECX OCTANE is it’s generous storage options & compartments. Using a reinforced wall construction we fit our toy haulers with robust & high security folding door’s to ensure safety, reliability and secure storage solutions.
HARD BODY EXTERIOR
Find the road less travelled with confidence. Elross’s Body building technique is unique in the market place, utilizing our own EPS panel core and Colourbond steel for our roof and wall construction. 50mm in thickness our panels provide superior strength and thermal properties for our harsh WA climate.
External moulds serve not only an aesthetic purpose but provide structural rigidity to our advanced body technology. Our body building’s primary function is to ensure the chassis, floor and walls all work together as a load bearing structure, not our furniture.
OFF GRID ROAM FREE
The ECX OCTANE comes with many features to enable comfortable off grid living capability. Equipped with 400Watts of solar as standard feeding a 200 A/H LifePO4 lithium battery bank, power management is handled by the industries and Australia's best RED ARC via their BMS 30 and redvision LCD screen.
All Elross Solar systems are upgradable with a larger panel array, additional battery banks and large sine wave inverters to extend your off-grid stay.
Featuring 190L of fresh and 95L of Grey water as standard, with upgradable HPDE Rotomolded tanks, you are sure to be ready to escape from the rat race.
LONG RANGE CAPABILITIES
*subjected to terms and conditions.
FLOORPLAN & SPECIFICATIONS
-
![]()
17FT
External Dimensions (mm) Length: 7745 Width: 2300 Height: 3150
Load and axle: 3.3T Coil / 3.4T Air | Approx min. Tare 2250kg | Ball weight: Approx 190kg
Please contact us for further layouts.
-
![]()
18.5FT
External Dimensions (mm) Length: 8095 Width: 2300 Height: 3150
Load and axle: 3.7T Coil / 3.4T Air | Approx min. Tare 2450kg | Ball weight: Approx 205kg
Please contact us for further layouts.
-
![]()
20FT
External Dimensions (mm) Length: 8495 Width: 2300 Height: 3150
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2700kg | Ball weight: Approx 220kg
Please contact us for further layouts.
-
![]()
21FT
External Dimensions (mm) Length: 8795 Width: 2300 Height: 3150
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2780kg | Ball weight: Approx 225kg
Please contact us for further layouts.
-
![]()
22FT
External Dimensions (mm) Length: 9115 Width: 2300 Height: 3150
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2850kg | Ball weight: Approx 230kg
Please contact us for further layouts.
| MODEL | AXLE | PRICED FROM |
|---|---|---|
| ECX-17 Octane | Dual | $140 990.00 |
| ECX-18.5 Octane | Dual | $150 990.00 |
| ECX-20 Octane | Dual | $160 990.00 |
| ECX-21 Octane | Dual | $167 990.00 |
| ECX-22 Octane | Dual | $172 990.00 |
| ECX-23 Octane | Dual | $177 990.00 |
We make every effort to keep information as accurate as possible. Due to our continuous product development and improvement all information and items are subject to change without notice.
